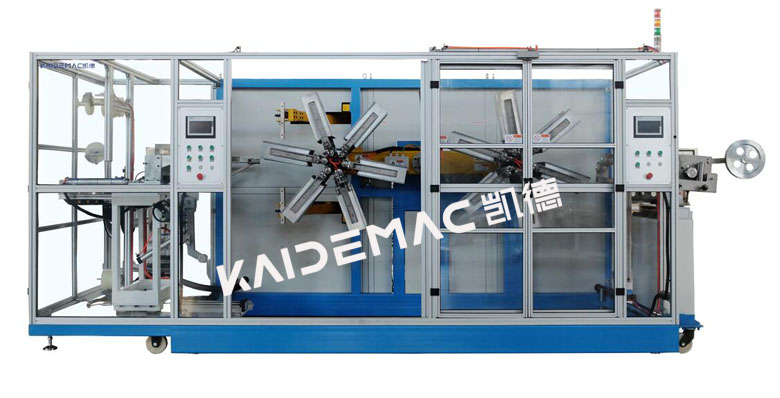

Fully Automatic PE-RT/PE-XB/PE/Drip Irrigation Pipe Coiler

(1) Full automatic pipe winding machine, self-designed and developped, can realize automatic winding, automatic roll change & cutting, automatic strapping and automatic unloading. We also apply full automatic packaging solution. meets urgent needs of intelligent production duct to the shortage of human resources, solves the problem that manual roll changes in high speed pipe production line is too late, and labor cost is increasing high. Production efficiency is effectively improved.

(2) Pipe Accumulator equipped to ensure sufficient buffering time while automatic coil changes. It also has function of tesion control, which can automatically adjust the winding speed accroding to the storage pipe length. Winding speed is precisely synchronized with the line production speed.

(3) A series of auxiliary devices such as pipe clamping, automatic cutting and pipe end pressing in this winding machine are essential intelligent fucntions for fully automatic operation of the winder.

(4) Auto strapping device can be customized according to the user's requirement. The device can realize automatic 3-5 strapping to the coil. After finishing auto strapping,the auto discharging part will start subsequently. When finish auto discharging, the reel will return to the initial position automatically. No manually intervention during the entir process.

(5) PLC Control system is applied, enter with setting instruction. Available to set the coiling length, strapping quantities, coiling pipe diameter etc parameter etc parmeters through HMI (Human Machine Interface), which guarantee the synchronization and stability of the entire system.

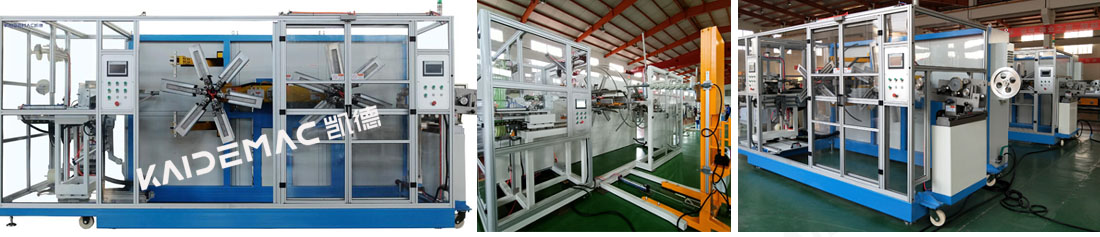

◎ Introduction of this Pipe Coiler

4Full-automatic pipe winding machine, self-designed and developed, can realize

【automatic winding, automatic roll change & cutting, automatic strapping and automatic unloading】.

4It meets urgent needs of intelligent production due to the shortage of human resources, solves the problem that manual roll changes in high speed pipe production line is too late, and labor cost is increasing high. Production efficiency is effectively improved.

4Pipe accumulator equipped to ensure sufficient buffering time while automatic coil changes. It also has function of tension control, which can aromatically adjust the winding speed according to the storage pipe length. Winding speed is precisely synchronized with the line production speed.

4Auto packaging device can be customized according to the user’s requirement. No manually intervention during the entire process.

4The latest generation of Siemens programmable control system is applied, enter with setting instruction，which guarantee the synchronization and stability of the entire system.

4Especially suitable for High speed PE-RT Pipe Production Line, High Speed Round Drip Irrigation Pipe Machine, which can realize the automatic pipe cutting and coils changing, effectively ensures the high speed and stable line production .

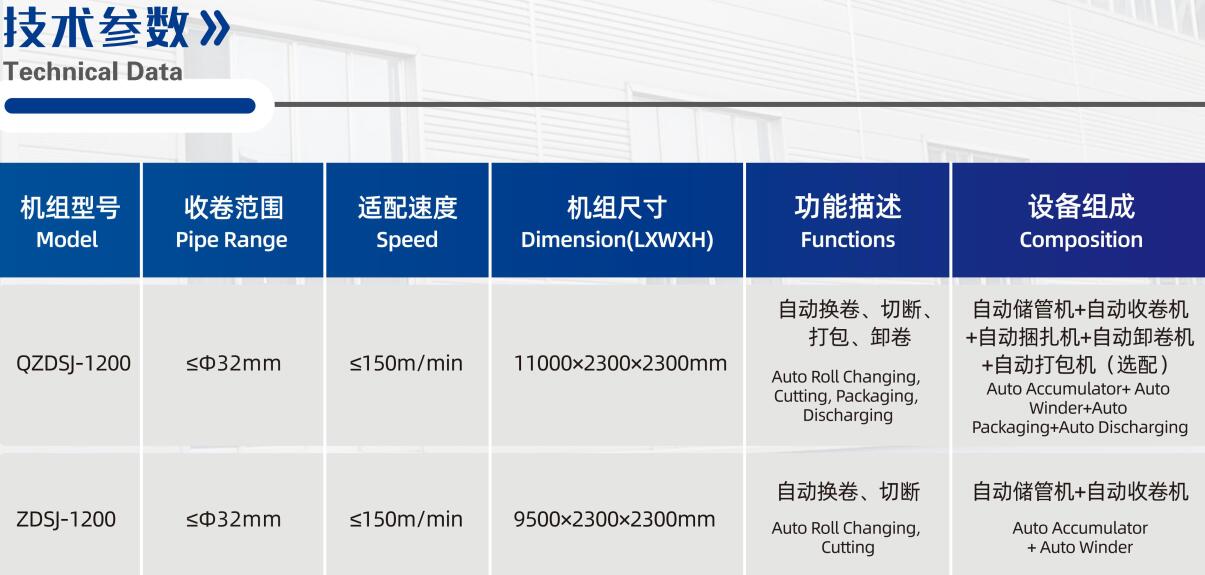

Please freely to contact us, to get the video and detailed specification ！
