Pipe Winding Machine for PE/PERT/PEXB Pipe (16-32mm)

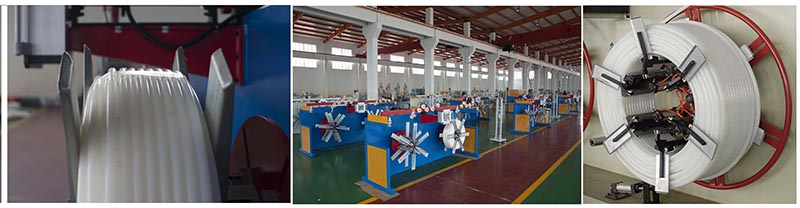

◎ Introduction of this Pipe Coiler

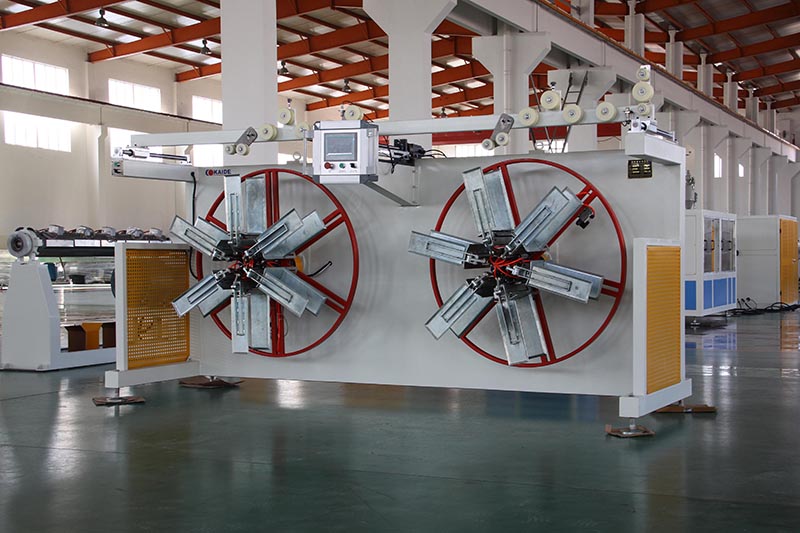

● This Double Station Pipe Coiler Machine is dependently designed by KAIDE company, adopted Servo Traverse Unit, to make sure the even pipe displacement and final tidy pipe coils.
● Especially suitable for
- High speed PE-RT Pipe Production Line,
- High Speed Round Drip Irrigation Pipe Machine,
- High Speed PEXB Pipe Machine
- PEXB/EVOH Pipe Making Machine
- PERT/EVOH Pipe Production Machine
- PEX-AL-PEX Pipe Making Machine
- PERT-AL-PERT Pipe Making Machine
● Adopted Tension Controller to sense the pipe tensile force, used for adjusting the pipe winding speed automatically.
● Easy to operate, controlled by Siemens PLC computer, Synchronous control with the whole line.
◎ Technical Parameter
| No | Item | Parameter |
| 1 | Model | SGJ-1000A |
| 2 | Reel ID | Φ450-650mm,Adjusted |
| 3 | Max.Reel OD | Φ1300 mm, Adjusted |
| 4 | Pipe Range | Φ16mm-32mm |
| 5 | Working Position | Double working position |
| 6 | Frequency Inverter | ABB Brand |
| 7 | Control | Imported Siemens PLC control,7” screen |
| 8 | Traversing Unit | Servo Traversing unit, Servo controller |
| 9 | Tension Control | With tension controller for winding speed |
For more details, please freely to contact us .
