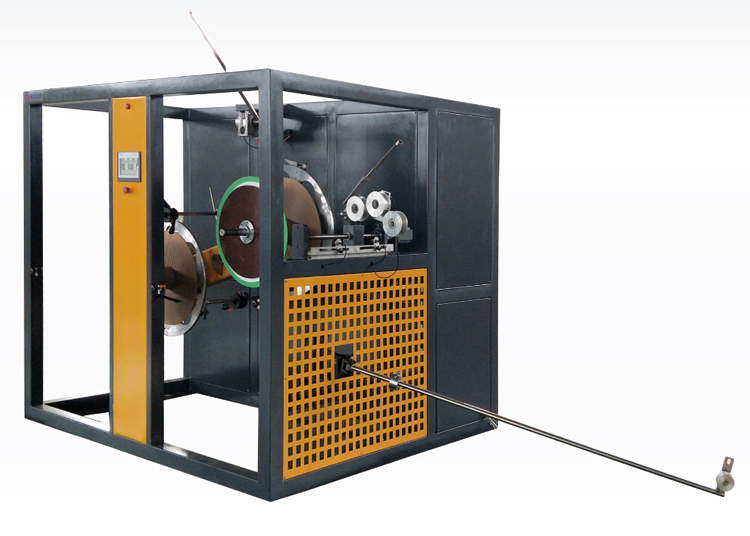

Flat Drip Irrigation Tape Automatic Coiler
This Automatic Winding Machine is specially designed for high speed flat drip irrigation tape production line, with speed 180m/min-200m/min. It can automatically realize pipe cutting and rolls changing.
● Automatic winding machine is driven by servo motor and controlled by SIEMENS PLC system.
● Application of servo traversing and tension control system in this flat drip irrigation tape line, can ensure the high sync condition of winding speed and line speed, making winded coils even and neat.
● During production, the winder can cut pipes and change reels automatically according to the setting length. And also print length tag of each coil.
◎ Technical Parameter
| No | Item | Parameter |
| 1 | Model | ZDSJ-200(Flat Tape) |
| 2 | Control Mode | Siemens programmable PLC control |
| 3 | Working Position Qty | Double |
| 4 | Coiling Disc Change | Auto cut , auto change |
| 5 | Auto Transverse Unit | Servo transverse, pitch adjusted |
| 6 | Motor Control | Servo controller control |
| 7 | Tension Control | Tension control sensor, PLC control |
| 8 | Dimension | 2600x1800x1900mm |
| 9 | Coils Range | 12mm-20mm |
