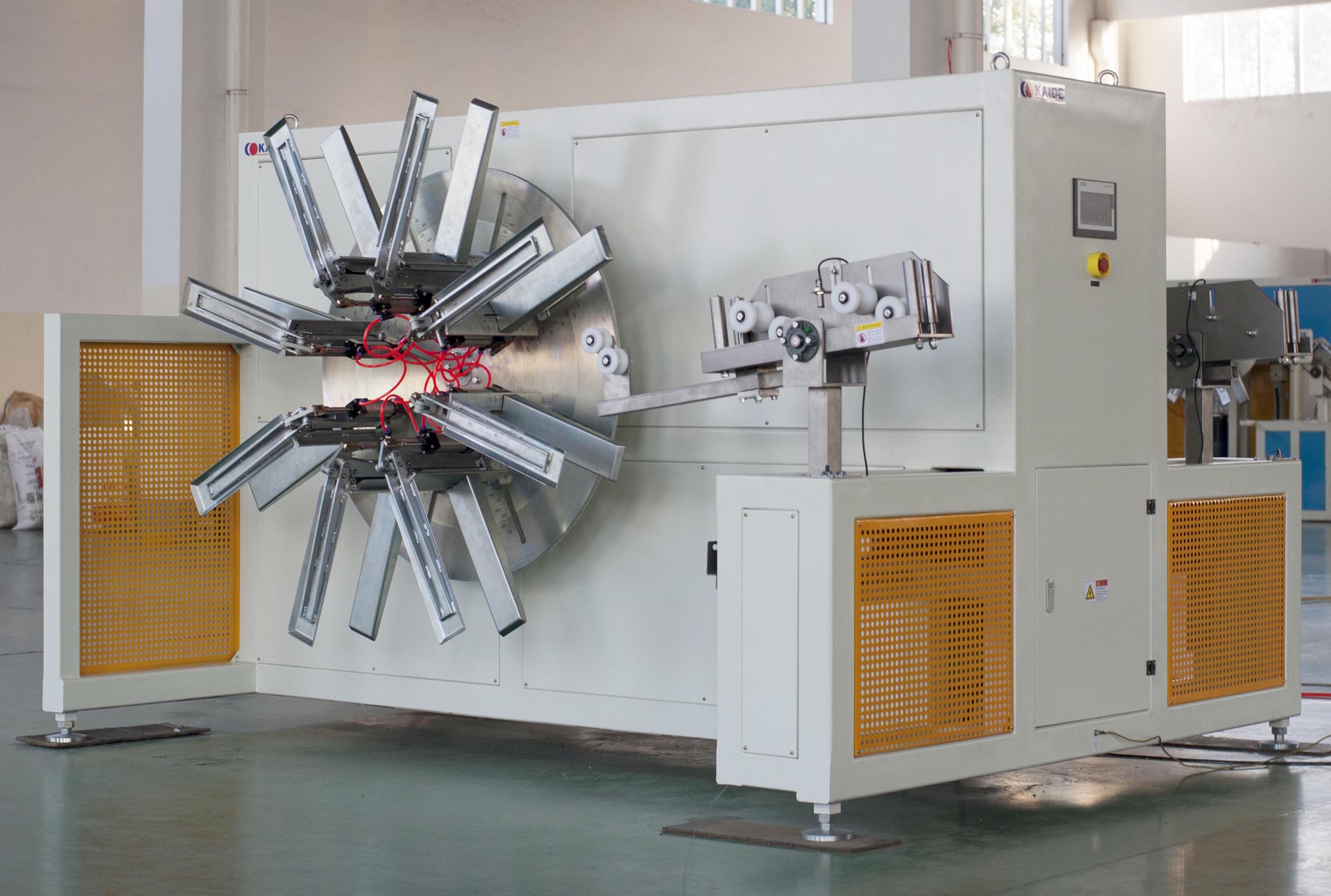

This SGJ-1700 Pipe Winding Machine is designed for 20mm-63mm HDPE Pipe production line. It can be manufactured as double working position, also can be manufactured as single position for saving cost.
◎ Introduction of this Pipe Coiler

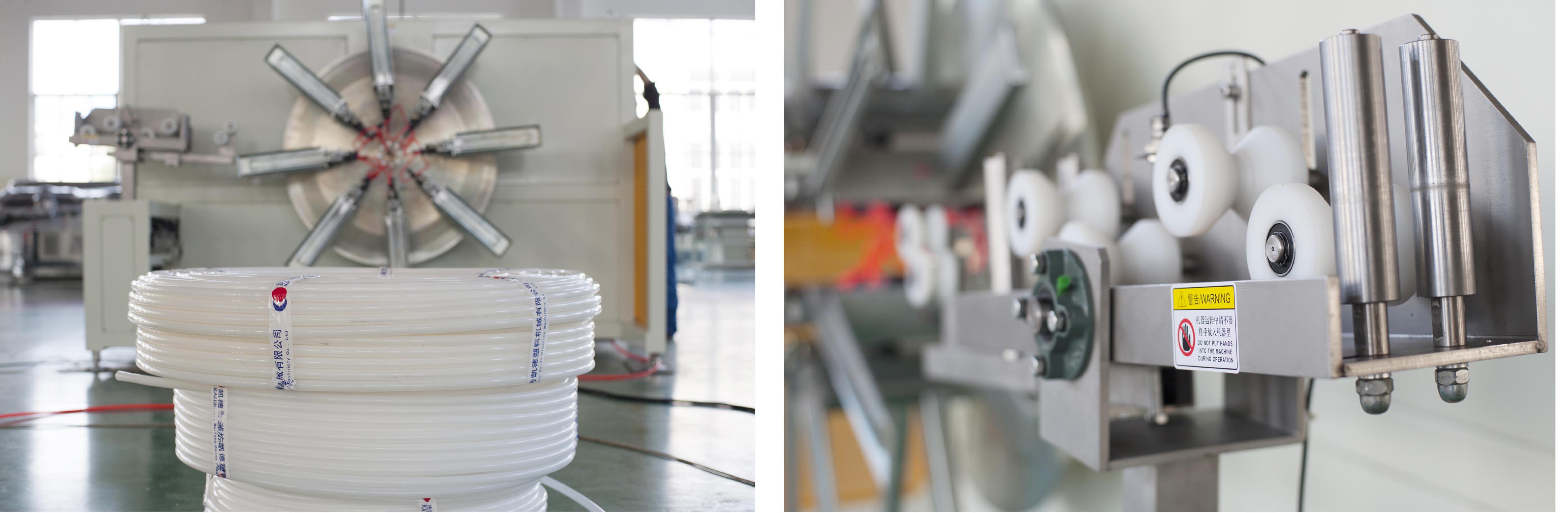

● This Double Station Pipe Coiler Machine is dependently designed by KAIDE company, adopted Servo Traverse Unit, to make sure the even pipe displacement and final tidy pipe coils.
● Especially suitable for HDPE Pipe Production Line 20mm-63mm, HDPE Pipe Extrusion Machine 20mm-110mm
● Equipped with "pipe end press unit“, for assisting the operator to unload and pack the final pipe coils.
● Easy to operate, controlled by Siemens PLC computer, Synchronous control with the whole line.
● With ruler on the reel and coiling disc, the inner diameter and width can be asjuted easily.
| No | Item | Parameter |
| 1 | Model | SGJ-1700 |
| 2 | Reel ID | Φ500mm-1700mm, or customized |
| 3 | Max.Reel OD | Φ2300 mm |
| 4 | Pipe Diameter | Φ16mm-63mm |
| 5 | Reel Width | 370mm |
| 6 | Working Position | Single or Double working position |
| 7 | Reel drive mode | Torque Motor Driven |
| 8 | Traversing Unit | Servo Traverse unit |
| 9 | Unloading mode | Pneumatic control , shrinkable claws |
