Polyurethane Foaming Insulation Pipe Production Line

This Polyurethane Heat Preservation Pipe Production takes one step process technology, which was researched by KAIDE R&D team, have overcome numerous difficulties. This line is mainly for the production of PE heat preservation pipe, which is widely applied in the fields of oil, chemicals, centralized heating system, municipal engineering,etc.

Extruder

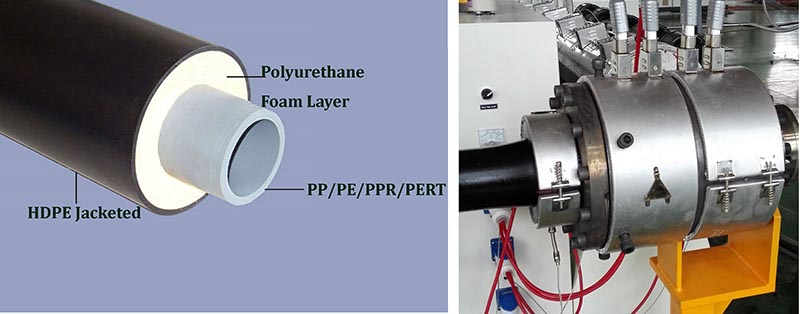

This Polyurethane Foaming Pipe Making Machine adopts special designed screw and barrel, with high efficient, ensuring the stable and high line speed; The rigid Polyurethane layer is directly injected into the chamber between Inner pipe and outer protection HDPE layer, by foaming machine using the liquid of polyurethane foam plastic, it called pipe in pipe foaming technology.

Die Head

The Foaming pipe making machine use specially designed composite die head, which ensures the stability of high speed extrusion and manufactured pipe quality.


PLC System

The production line to make Polyurethane Foam Coating pipe use new generation Siemens PLC control system.

Adopting Multi-point closed loop control system, ensuring high speed synchronous control and reliable operating.

It can realize remote control function for overseas client.

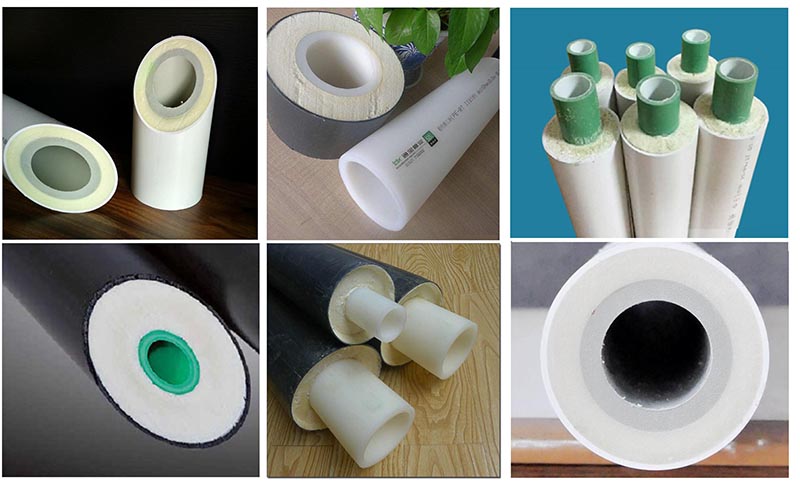

Advantages of the Polyurethane Pipe

Pipe long life span, owing to the features of polyurethane materials, largely reduce the repair and maintenance cost of hot water pipeline changing.

The density of rigid polyurethane is 60kg/m³-80kg/m³, fully fill in the gap of Inner plastics pipe and outer HDPE protection layer, with sufficient bonding strength, to make this three layers: Inner Plastics pipe, Polyurethane foaming Layer, Outer protection HDPE layer integral, its property much better than the normal PO pipe.

Excellent heating preservation performance, its thermal loss only 5% of the normal plastic pipe, which can save vast energy during the application .

Frequently-use Pipe Specification

Specification

ID/OD (mm)

Inner Pipe(mm)

Outer HDPE Pipe(mm)

Polyurethane

Thickness mm)

50*75

50(mm)

75(mm)

12.5(mm)

50*90

50(mm)

90(mm)

20(mm)

63*90

63(mm)

90(mm)

13.5(mm)

63*110

63(mm)

110(mm)

23.5(mm)

75*110

75(mm)

110(mm)

17.5(mm)

90*160

90(mm)

160(mm)

35(mm)

110*160

110(mm)

160(mm)

25(mm)

160*200

160(mm)

200(mm)

20(mm)
