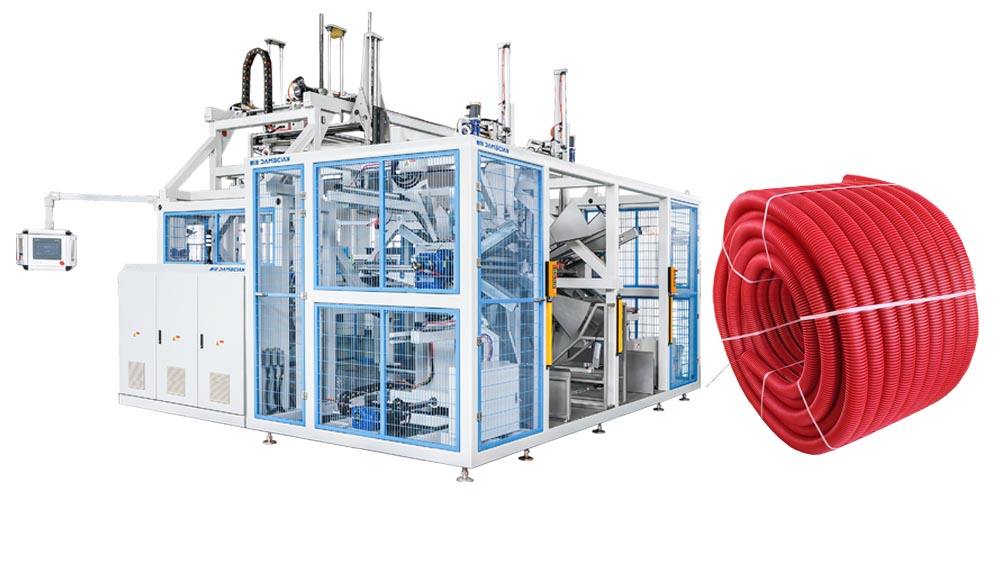

The automatic coiler adopts servo traversing system and PLC intelligent control; It can realize a series of intelligent operations, such as automatic pipe accumulating, automatic coil cutting and new coil changing, automatic brake etc,
This coiler is designed for double wall and single wall corrugated pipe, suitable line speed 5m/min-50m/min, with the function of automatic coiling, automatic cutting, automatic strapping, automatic unloading,etc. At the same time, the inside PA Nylong wires can be cut offer in the process. It is the latest technology in China.
Basic information about the Automatic Pipe Coiler.
PIPE DIMENSION AND TYPE
Pipes Outside Diameter 40mm - 200 mm
Pipes type Double Wall Corrugated pipe
REEL DIMENSIONS
Nos. of Reels 2
Reel Outside Diameter 2000 mm
Reel Inside Diameter 400 - 1200 mm
Reel Width 300 - 640 mm
Maximum coil Weight 50 Kg
STRAPPING UNIT
Nos. of straps 2, 3 or 6
Type of strap PP or PET

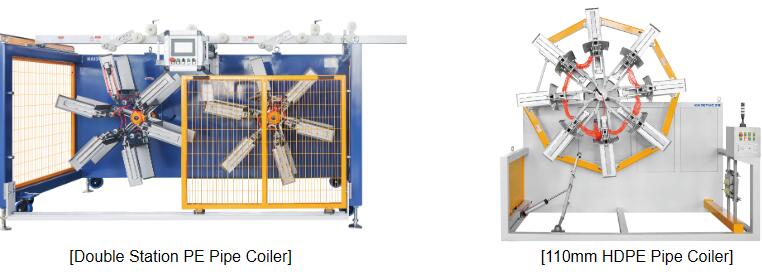

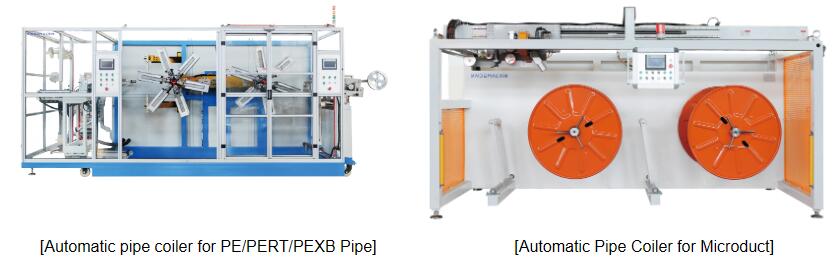

Other Types of Pipe Coiler
For more information, please check below video of corrugated pipe coiler
