PVC Fiber Reinforced Hose Production Line

This line used to be produce composite 3 layers PVC fiber reinforced soft pipes. This kind of pipes are widely applied in the Garden, landscape, irrigation fields,etc.

Line Model	Extruder Model	Production Scope	Production Speed	Output	Nominal Power
XR-50	SJ-65/25×2	ф8-50mm	2-15m/min	180Kg/h	45KW

◎ PVC fiber hose production line adopts special designed screw and barrelfor PVC material, ensuring plasticizing quality and produced pipe transparency.

◎ Special designed extrusion die head controls each layer separately, witheven thickness; and each layer thickness can be adjusted freely.

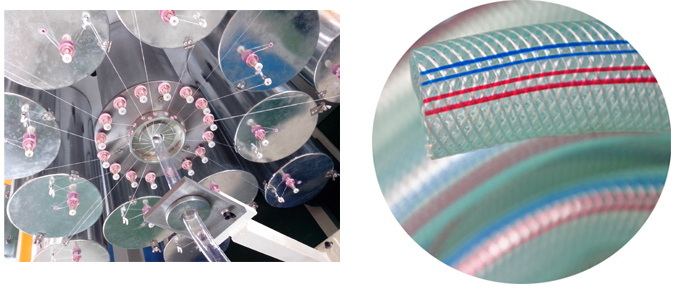

◎ PVC fiber hose production line adopts frequency regulator controlledbraiding machine for even braiding and high speed.



◎ The PVC hose making machine adopts automatic coiler, ensuring regular andbeautiful coiling of the pipe.
