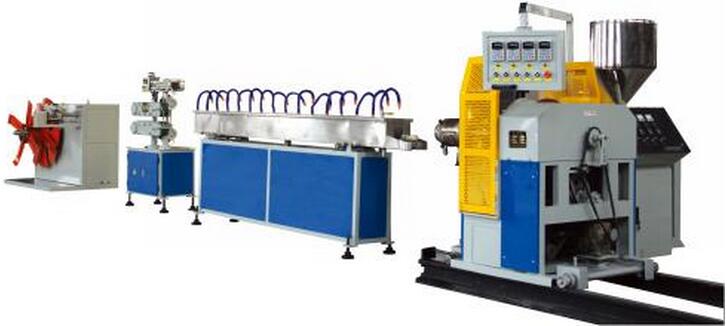

PVC steel wire reinforced hose production line is suitable to produce PVC spiral steel wire reinforced hose, it consists of one extruder, spiral steelwire forming unit, cooling flume, haul-off unit and winder.

Line Model | Extruder Model | Production Scope | Production Speed | Output | Nominal Power |
GR-63 | SJ-65/25 | Ф20-63mm | 2-10m/min | 90kg/h | 55KW |
GR-160 | SJ-90/25 | Ф75-160mm | 2-6m/min | 240kg/h | 80KW |

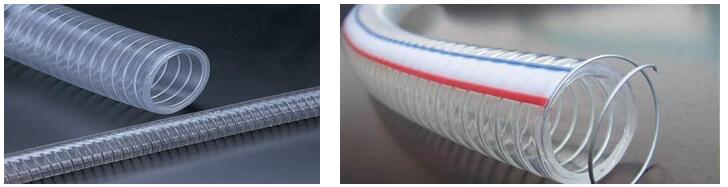

◎The PVC steel wire reinforced hose have theadvantage of pressure and corrosive resistance, negative pressure and bendresistance. It is used to convey the gas, liquid and powder material. It iswidely used in industry, agriculture, architecture, water conservancyirrigation and dust collector, etc.
◎ PVC hose production line adopts high speed and efficient extruder,ensuring plasticizing quality and output.

◎ Special designed steel wire winding machine can achieve high windingspeed, even winding space and longer continuous production time.
◎ Special designed coating type die head can produce high quality hose withhigh transparency, and even wire distribution.
◎The hose production line adopts imported electrical elements for stableand reliable running.
All control buttons are humanized design, easy for operation.
