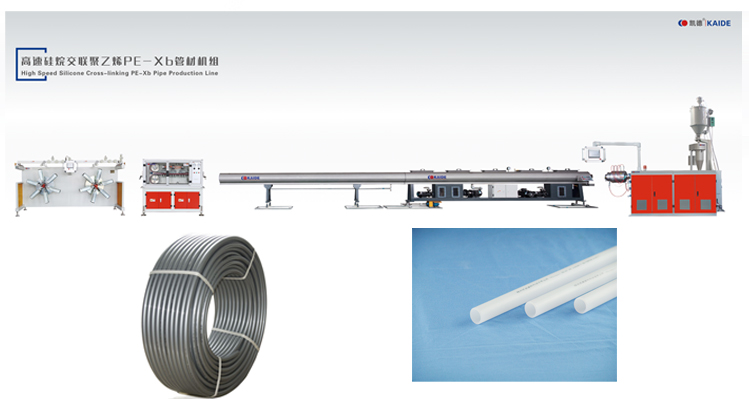

The high speed PE-Xb pipe extruder adopts special structured cross-linking reaction type screw, to realize the stability and good plasticizing quality of high speed extrusion.
Line Model | Screw Diameter | L/D | Production Scope | Production Speed | Nominal Power | L×W×H |
KDXB-65 | ф65mm | 30:1 | Ф16-32mm | 15m/min | 72KW | 27m×2m×3m |
KDXB-80 | Ф80mm | 30:1 | Ф16-63mm | 35m/min | 102KW | 35m×2m×3m |
● Pressure-Storage Reaction Die Head
◎Special designed pressure-storage reaction type die head of this pexb pipe line has overcome the stress orientation of polymer molecular chain during the pipe formatting.
◎Realizing the constant pressure extrusion of the pipe. The stability of extrusion pressure is the essential condition for high speed production.
● Vacuum Calibrators
◎ Patented vacuum calibrators are special designed multi-sheet water bath type,
◎ Realize the even and effective calibrating & cooling effects.
● Haul-off Machine
◎ The pex-b pipe machine adopts multi-group roller clamping type belt haul-off machine, with high & stable pulling speed
◎ completely overcomes the vibration or slipping problem of traditional rubber block haul-off machine.
● PLC Control System
◎The PEX-B pipe making machine adopts original imported new generation PLC control system which ensures the high speed synchronous control and reliable operating of the whole production line.
