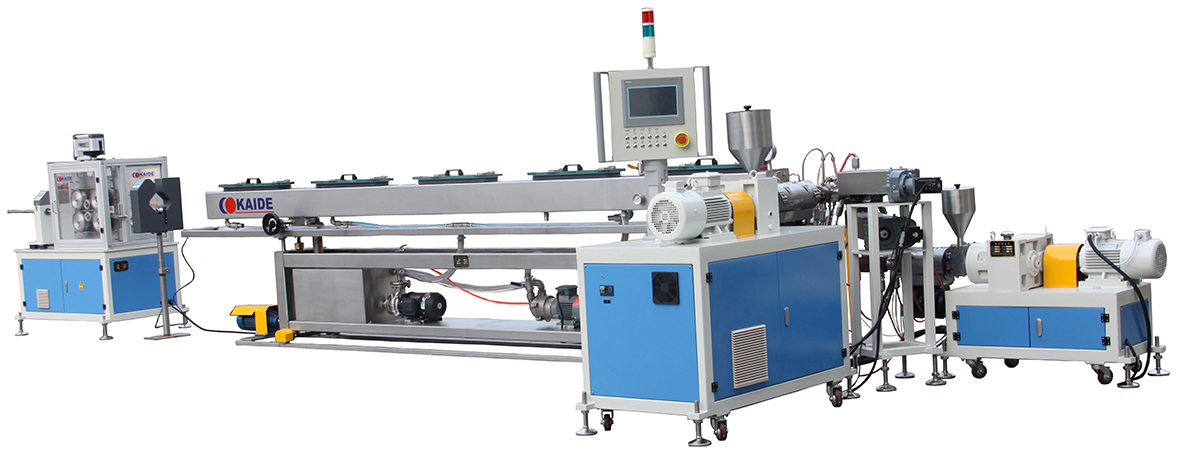

High Precision Medical Catheter Production Line

International advanced technologies andunits were equipped with this medical tube production line, highly ensuring the geometric precision and the internal performance uniformity of the manufactured tube.


Model

Production  Scope

(mm)

Tolerance(mm)

Screw  Diameter

(mm)

Nominal

Power(kw)

Production  Speed

(m/min)

SJ-30

0.2~1.5

±0.03mm

30mm

12KW

50m/min

SJ-45

1.5~8.0

±0.05mm

45mm

21KW

60m/min

SJ-50

6.0~16.0

±0.05mm

50mm

45KW

100m/min


● Key Technologies Applied


Following key technologies and units were applied in this medical tube line:

◎ High precise drive system

◎ Pressure stabilizing system

◎ High precise weight per meter control system

◎ High precise medical catheter moulds,


● Production Process

According to the geometric size and catheter materials, a reasonable process proposal will be submitted,including:

Raw materials formula

Extruding temperature

◎ Screw rotating speed etc.

One-time co-extrusion or secondary co-extrusion technology will be applied in the multi-layer catheter production line


● Application of the Line

Mainly for producing all kinds of precise medical catheters, such as, the oxygen catheter, blood transfusion catheter,indwelling catheter, drainage catheter,trachea cannula, central venous catheter, anesthesia catheter, urethral catheter, capillary catheter, perforated catheter, etc.Suitable materials are PVC, PE ,PP,PA and ABS,etc



.
