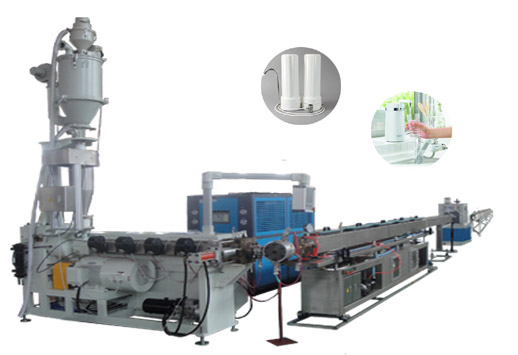

LDPE purify water tube production line adopts the most advanced technology,such as, Siemens PLC synchronous control system, Hydraulic screen changer, German Coax Vacuum valve to control the vacuum degree.
Model | Scew Diameter | L/D | Production Scope | Production Speed (m/min) | Nominal Power |
SJ-50 | 50mm | 33:1 | 6-12mm | 40m/min | 48KW |
SJ-65 | 65mm | 33:1 | 6-12mm | 65m/min | 68KW |
SJ-60 | 60mm | 33:1 | 6-12mm | 100m/min | 98KW |
● Following technologies & units
were applied in this RO water tube production machine
◎ Spiral pressure storage die head effectively overcomes the instaneous fluctuation of extrusion pressure, realizing high speed and constant pressure extrusion
◎ High precise weight per meter control system
◎ High precise pipe moulds
◎ Brushed stainless steel vacuum tanks
◎ Servo traversing pipe coiler

◎ High speed and stable haul-off machine
◎ Synchronous advanced control system
◎ Laser diameter measuring gauge to control the pipe diameter to get high qualified tube
